Continuous Composite Systems™ (CCS™)

Lightweight, ultra-high strength reinforcement

Continuous Composite Systems™ (CCS™) achieve ultra-strong and lightweight body structures at a cost-competitive rate. CCS™ technologies combines highly engineered sealants and adhesives with a fiber-reinforced composite carrier in a two-dimensional profile. This two-dimensional part is designed to provide strength, stiffness, and rigidity to a lightweight structure.

csm_altair_enlighten_award_2021_and_2022_fea2e95474

What is CCS™?

Continuous Composite Systems ™ (CCS™) are continuous fiber-reinforced composite materials that can be used as a carrier when combined with our highly engineered sealants and/or structural adhesives. The system is designed to provide strength, stiffness, and rigidity to a lightweight structure.

CCS™ enables a cost-effective reinforcement solution proven to be 75% lighter than steel and 30% lighter than aluminum. Our extensive pultrusion process allows us to manufacture straight parts with constant cross sections delivering consistent, high strength quality components.

When working with our customers, L&L’s team of engineers bring extensive CAE modeling capabilities and are able to produce and optimize unusual part designs, therefore, obtaining part validation before parts are created.

L&L Products – Continuous Composite Systems™ (CCS™)

CCS™ Proves to Have an Ultra-high Strength to Weight Ratio:

The numbers were created assuming ultimate tensile strength (MPa) over density (g/cc). These were normalized to 100 based upon aluminum as a baseline.

Key Product Attributes

Consistent Quality

And dimensionally accurate

Mass

75% lighter than steel; 30% lighter than aluminium

Nonconductive and Insulating

With a low co-efficient of thermal expansion

Ease of Assembly

Cost

Low line rates and inexpensive die costs

Corrosion Resistant

Strength

Excellent structural properties

Awards

Mobility Innovation Award

Society of Automotive Analysts

The composite seat structure on the 2022 Toyota Tundra™ won first place in the Innovations in Lightweighting category from SAA.

Excellent performance

Altair Enlighten Award 2022

For achievements in vehicle weight savings with the composite seatback design on the 2022 Toyota Tundra™.

Excellent performance

society of Plastics Engineers (SPE)

For achievements in vehicle weight savings and cost objectives with the composite seatback design on the 2022 Toyota Tundra™.

Excellent performance

altair enlighten award 2021

For lightweighting success on the composite tunnel for the 2021 Jeep® Grand Cherokee L.

NEWS

Altair Enlighten
Award Winner
for Seatback Design

BASF, L&L Products Flex-N-Gate, and Toyota collaborate to achieve vehicle weight savings with composite seatback design on the 2022 Toyota Tundra™.

Learn More

Discover

With our Continuous Composite Systems™ products and process, we deliver a cost effective, ultra-high strength reinforcement solution that brings extensive engineering knowledge, advanced CAE modeling, and the ability for adhesive use to create 3D shapes in a variety of applications.

strength

Ultra-High strength to weight ratio

Expertise

In-house engineering expertise

Process

Seamless integration of adhesives & rapid curing

capabilities

Advanced CAE capabilities

Competitive

Competitive pricing

Product Family

Our CCS™ technologies are composed of a variety of forms including: CCS™ Co-Ex, CCS™ Set, CCS™ Hybrid, and CCS™ Extreme. Due to its many forms, CCS™ offers a number of unique attributes in terms of material and fiber choice for a variety of applications.

CCS™ Co-Ex

CCS™ Co-Ex is a combination of continuous glass filled nylon co-extruded with adhesive to create a continuous cross section with multiple materials.

CCS™ Set

CCS™ Set is a continuous glass reinforced two-dimensional profile designed to provide strength, stiffness, and rigidity to a straight profile.

CCS™ Hybrid

CCS™ Hybrid utilizes a custom combination of continuous glass, carbon, and fabrics to provide targeted strength, stiffness, and rigidity in a straight profile.

CCS™ Extreme

CCS™ Extreme is a highly reinforced two-dimensional continuous carbon fiber profile designed to provide ultimate strength, stiffness, and rigidity to a straight profile.

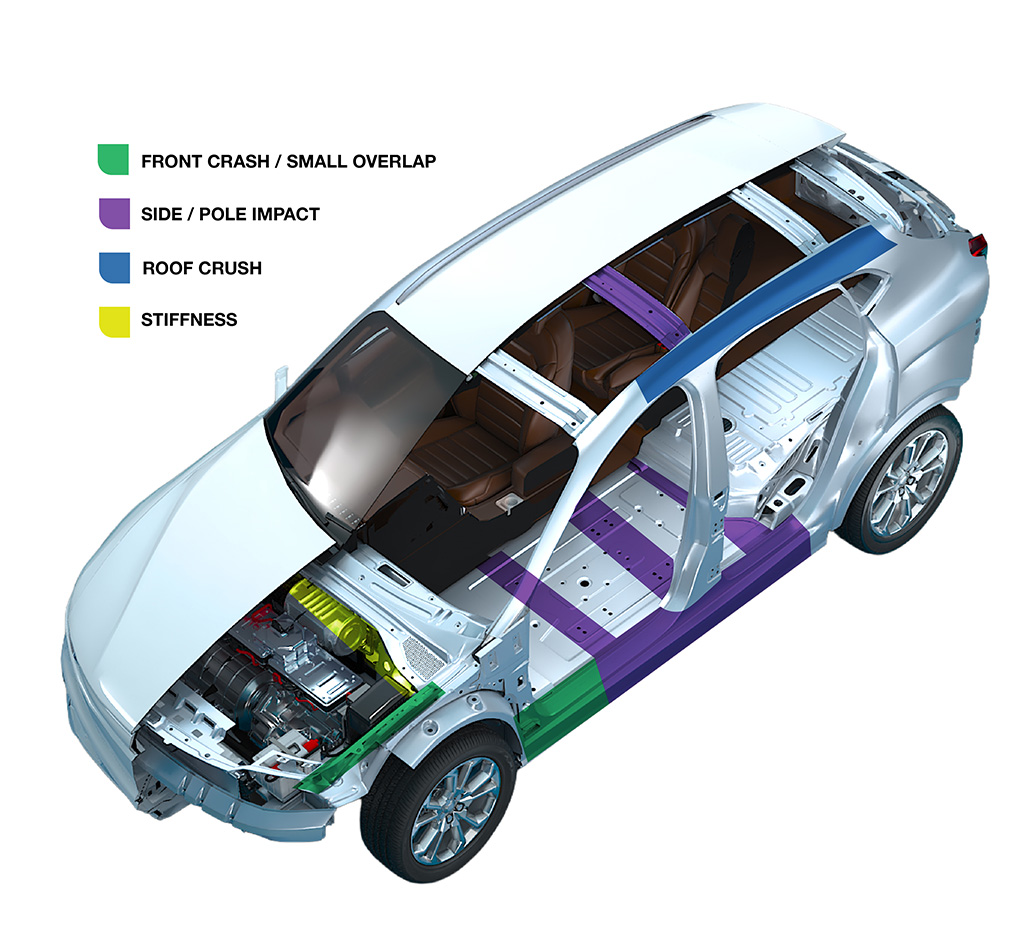

Potential Applications

CCS™ delivers ultra-high strength reinforcement solutions with extensive engineering knowledage, advanced CAE modeling, and expertise in adhesives in a variety of applications. Our highly experienced engineering team works with our customers to design the CCS™ parts matching the specific requirements. Applications include reinforcing members for vehicle uni-bodies, frame sections for tube-frame vehicle constructions, or battery frames for electric vehicles.
